Capacitor
Aluminum Electrolytic Capacitors
EEEHD1C100AR

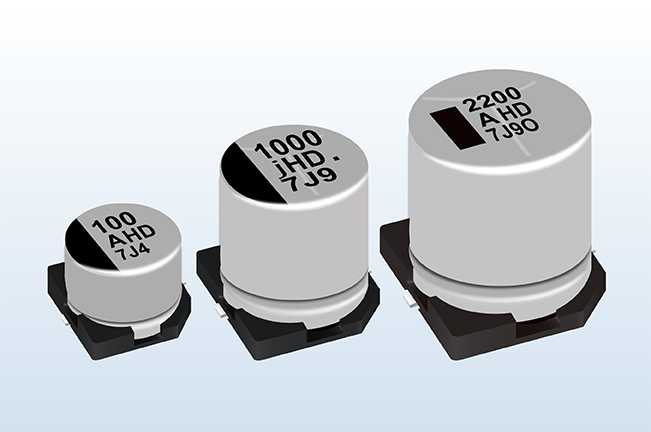

Panasonic HD (High temp. reflow) Series EEEHD1C100AR
Model
:
EEEHD1C100AR
Catalog
Catalogue
HD (High temp. reflow) Series Catalogue English (Download)
HD (High temp. reflow) Series Catalogue Chinese (Download)
HD (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEHD1C100AR
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
4.00mm
Length
5.80mm
Electrical
Capacitance
10µf
Leakage current .Max
3µA
Rated ripple current freq.
120Hz
Rated ripple current
28.0mA
Rated voltage
16.0V
Polarity type
Polar
Environmental
Category temperature range
－40 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
