EEEHC0J221XP

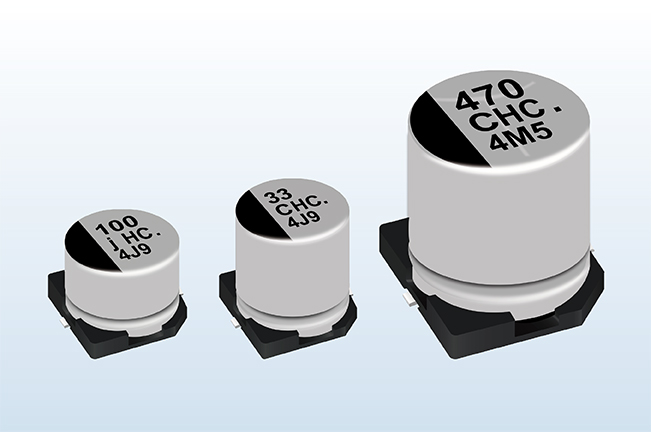

Panasonic HC Series EEEHC0J221XP
Model
:
EEEHC0J221XP
Catalog
Catalogue
HC Series Catalogue English (Download)
HC Series Catalogue Chinese (Download)
HC Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEHC0J221XP
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
6.30mm
Length
7.70mm
Electrical
Capacitance
220µf
Leakage current .Max
13.8µA
Rated ripple current freq.
120Hz
Rated ripple current
101.0mA
Rated voltage
6.3V
Polarity type
Polar
Environmental
Category temperature range
－40 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
