Capacitor
Aluminum Electrolytic Capacitors
EEEHBC101UAP

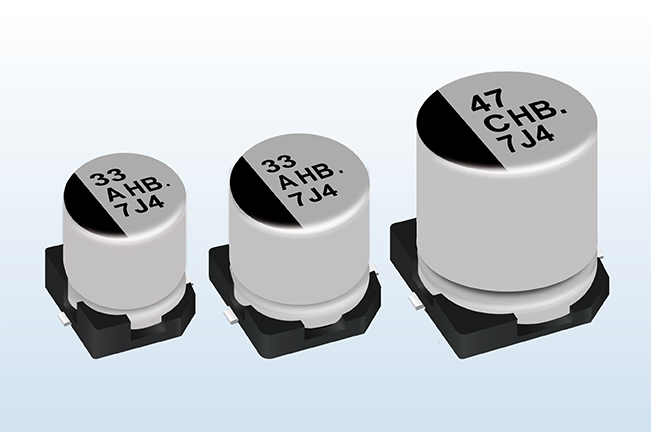

Panasonic HB (High temp. reflow) Series EEEHBC101UAP
Model
:
EEEHBC101UAP
Catalog
Catalogue
HB (High temp. reflow) Series Catalogue English (Download)
HB (High temp. reflow) Series Catalogue Chinese (Download)
HB (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEHBC101UAP
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
6.30mm
Length
5.80mm
Electrical
Capacitance
100µf
Leakage current .Max
16µA
Rated ripple current freq.
120Hz
Rated ripple current
70.0mA
Rated voltage
16.0V
Polarity type
Polar
Environmental
Category temperature range
－40 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
