Capacitor
Aluminum Electrolytic Capacitors
EEEHBA471UAP

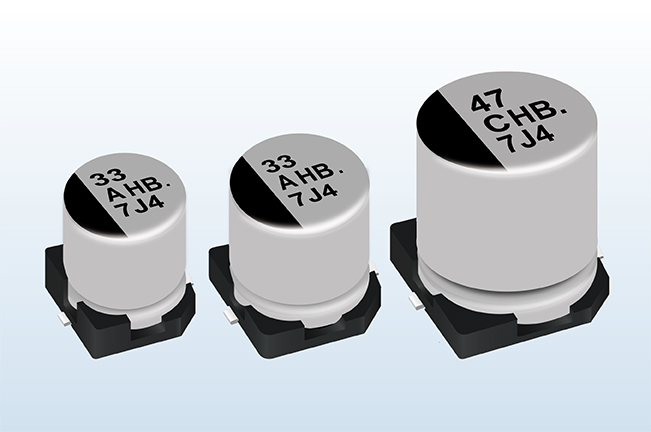

Panasonic HB (High temp. reflow) Series EEEHBA471UAP
Model
:
EEEHBA471UAP
Catalog
Catalogue
HB (High temp. reflow) Series Catalogue English (Download)
HB (High temp. reflow) Series Catalogue Chinese (Download)
HB (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEHBA471UAP
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
8.00mm
Length
10.20mm
Electrical
Capacitance
470µf
Leakage current .Max
47µA
Rated ripple current freq.
120Hz
Rated ripple current
220.0mA
Rated voltage
10.0V
Polarity type
Polar
Environmental
Category temperature range
－40 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
