EEEFTA331XAV

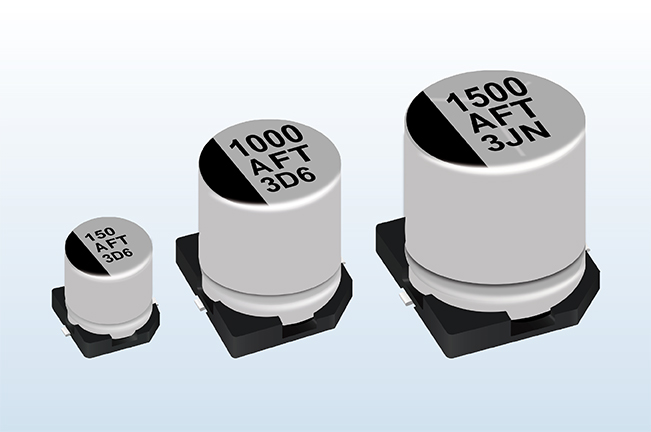

Panasonic FT (High temp. reflow) Series EEEFTA331XAV
Model
:
EEEFTA331XAV
Catalog
Catalogue
FT (High temp. reflow) Series Catalogue English (Download)
FT (High temp. reflow) Series Catalogue Chinese (Download)
FT (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFTA331XAV
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
6.30mm
Length
8.00mm
Electrical
Capacitance
330µf
Leakage current .Max
33µA
Rated ripple current freq.
100000Hz
Rated ripple current
600.0mA
Rated voltage
10.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
