Capacitor
Aluminum Electrolytic Capacitors
EEEFT1E680AR

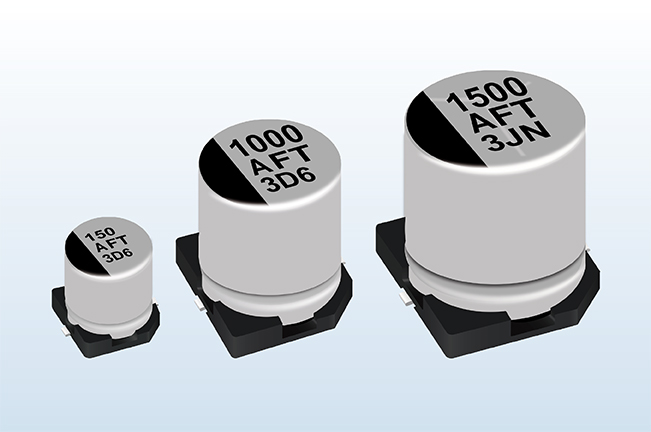

Panasonic FT (High temp. reflow) Series EEEFT1E680AR
Model
:
EEEFT1E680AR
Catalog
Catalogue
FT (High temp. reflow) Series Catalogue English (Download)
FT (High temp. reflow) Series Catalogue Chinese (Download)
FT (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFT1E680AR
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
5.00mm
Length
5.80mm
Electrical
Capacitance
68µf
Leakage current .Max
17µA
Rated ripple current freq.
100000Hz
Rated ripple current
240.0mA
Rated voltage
25.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
