Capacitor
Aluminum Electrolytic Capacitors
EEEFT1A102AP

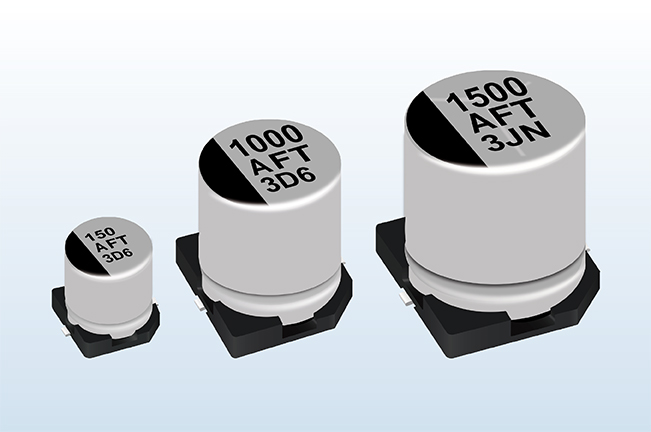

Panasonic FT (High temp. reflow) Series EEEFT1A102AP
Model
:
EEEFT1A102AP
Catalog
Catalogue
FT (High temp. reflow) Series Catalogue English (Download)
FT (High temp. reflow) Series Catalogue Japanese (Download)
FT (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFT1A102AP
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
8.00mm
Length
10.20mm
Electrical
Capacitance
1000µf
Leakage current .Max
100µA
Rated ripple current freq.
100000Hz
Rated ripple current
850.0mA
Rated voltage
10.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
