EEEFP1E151AL

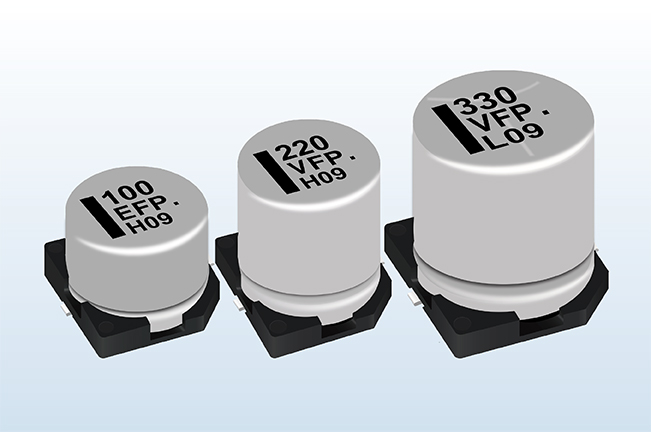

Panasonic FP [HF] (High temp. reflow) Series EEEFP1E151AL
Model
:
EEEFP1E151AL
Catalog
Catalogue
FP [HF] (High temp. reflow) Series Catalogue English (Download)
FP [HF] (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFP1E151AL
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
8.00mm
Length
10.20mm
Electrical
Capacitance
150µf
Leakage current .Max
37.5µA
Rated ripple current freq.
100000Hz
Rated ripple current
850.0mA
Rated voltage
25.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
