EEEFP1C331AV

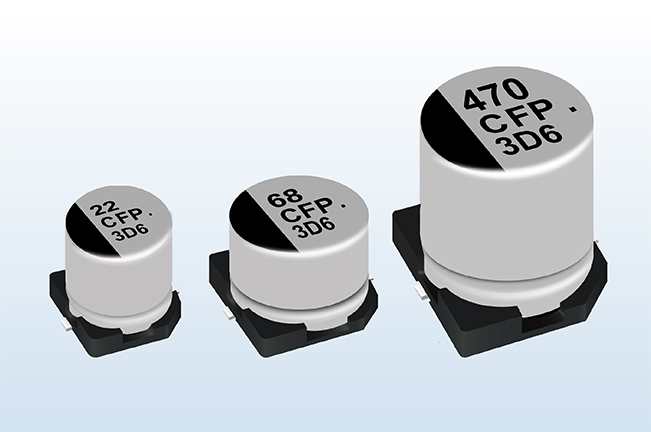

Panasonic FP (High temp. reflow) Series EEEFP1C331AV
Model
:
EEEFP1C331AV
Catalog
Catalogue
FP (High temp. reflow) Series Catalogue English (Download)
FP (High temp. reflow) Series Catalogue Japanese (Download)
FP (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFP1C331AV
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
8.00mm
Length
10.50mm
Electrical
Capacitance
330µf
Leakage current .Max
52.8µA
Rated ripple current freq.
100000Hz
Rated ripple current
850.0mA
Rated voltage
16.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
