Capacitor
Aluminum Electrolytic Capacitors
EEEFP0J331AL

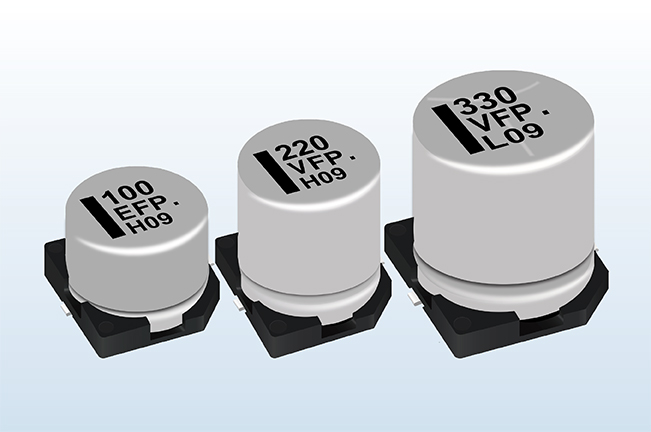

Panasonic FP [HF] (High temp. reflow) Series EEEFP0J331AL
Model
:
EEEFP0J331AL
Catalog
Catalogue
FP [HF] (High temp. reflow) Series Catalogue English (Download)
FP [HF] (High temp. reflow) Series Catalogue Chinese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFP0J331AL
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
8.00mm
Length
6.20mm
Electrical
Capacitance
330µf
Leakage current .Max
20.7µA
Rated ripple current freq.
100000Hz
Rated ripple current
500.0mA
Rated voltage
6.3V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
