Capacitor
Aluminum Electrolytic Capacitors
EEEFNE151XUV

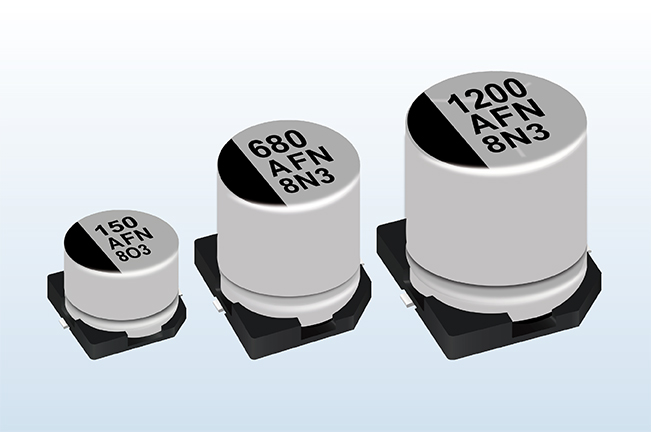

Panasonic FN (Standard/High temp. reflow) Series EEEFNE151XUV
Model
:
EEEFNE151XUV
Catalog
Catalogue
FN (Standard/High temp. reflow) Series Catalogue English (Download)
FN (Standard/High temp. reflow) Series Catalogue Chinese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFNE151XUV
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
6.30mm
Length
8.00mm
Electrical
Capacitance
150µf
Leakage current .Max
37.5µA
Rated ripple current freq.
100000Hz
Rated ripple current
280.0mA
Rated voltage
25.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
