Capacitor
Aluminum Electrolytic Capacitors
EEEFN1J330L

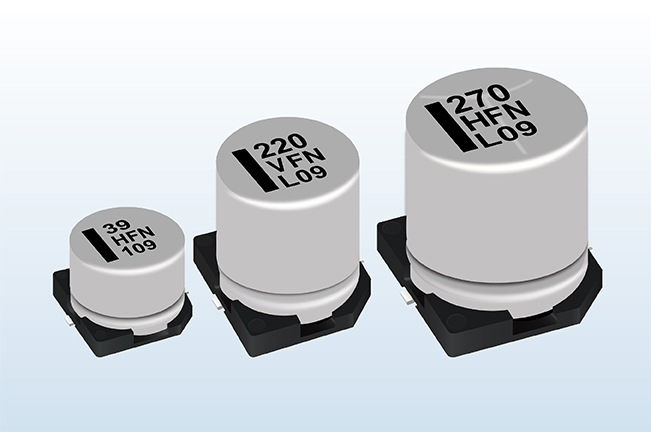

Panasonic FN [HF] (Standard/High temp. reflow) Series EEEFN1J330L
Model
:
EEEFN1J330L
Catalog
Catalogue
FN [HF] (Standard/High temp. reflow) Series Catalogue English (Download)
FN [HF] (Standard/High temp. reflow) Series Catalogue Chinese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFN1J330L
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
8.00mm
Length
10.20mm
Electrical
Capacitance
33µf
Leakage current .Max
20.7µA
Rated ripple current freq.
100000Hz
Rated ripple current
250.0mA
Rated voltage
63.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
