Capacitor
Aluminum Electrolytic Capacitors
EEEFK1V271SL

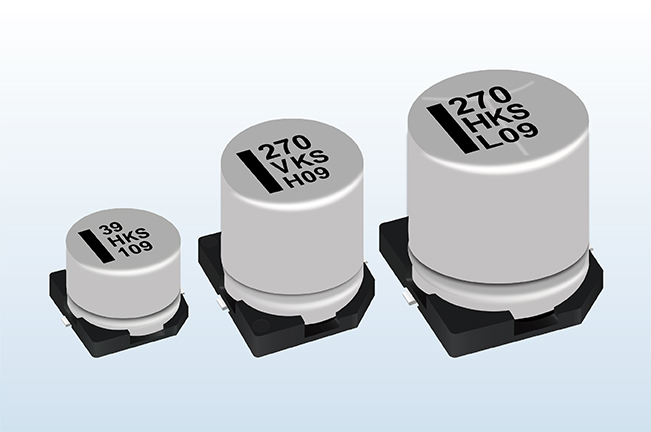

Panasonic FKS [HF] (Standard/High temp. reflow) Series EEEFK1V271SL
Model
:
EEEFK1V271SL
Catalog
Catalogue
FKS [HF] (Standard/High temp. reflow) Series Catalogue English (Download)
FKS [HF] (Standard/High temp. reflow) Series Catalogue Chinese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFK1V271SL
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
8.00mm
Length
10.20mm
Electrical
Capacitance
270µf
Leakage current .Max
94.5µA
Rated ripple current freq.
100000Hz
Rated ripple current
600.0mA
Rated voltage
35.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
