EEEFK1V222SV

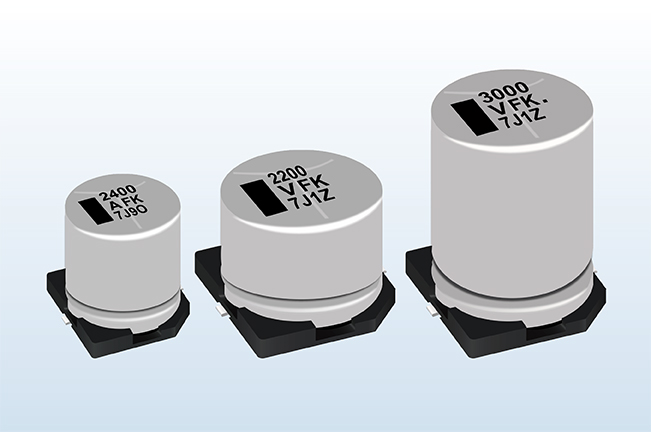

Panasonic FKS [Medium-size] (High temp. reflow) Series EEEFK1V222SV
Model
:
EEEFK1V222SV
Catalog
Catalogue
FKS [Medium-size] (High temp. reflow) Series Catalogue English (Download)
FKS [Medium-size] (High temp. reflow) Series Catalogue Chinese (Download)
FKS [Medium-size] (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFK1V222SV
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
18.00mm
Length
16.80mm
Electrical
Capacitance
2200µf
Leakage current .Max
770µA
Rated ripple current freq.
100000Hz
Rated ripple current
2060.0mA
Rated voltage
35.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
