Capacitor
Aluminum Electrolytic Capacitors
EEEFK1J121SV

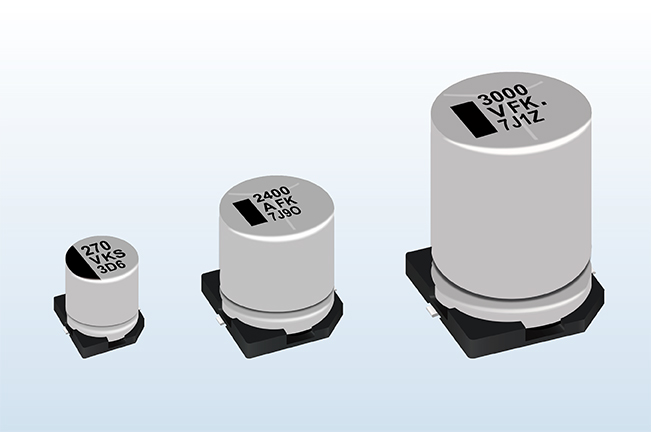

Panasonic FKS (Standard/High temp. reflow) Series EEEFK1J121SV
Model
:
EEEFK1J121SV
Catalog
Catalogue
FKS (Standard/High temp. reflow) Series Catalogue English (Download)
FKS (Standard/High temp. reflow) Series Catalogue Chinese (Download)
FKS (Standard/High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFK1J121SV
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
10.00mm
Length
10.50mm
Electrical
Capacitance
120µf
Leakage current .Max
75.6µA
Rated ripple current freq.
100000Hz
Rated ripple current
400.0mA
Rated voltage
63.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
