Capacitor
Aluminum Electrolytic Capacitors
EEEFK1E472SM

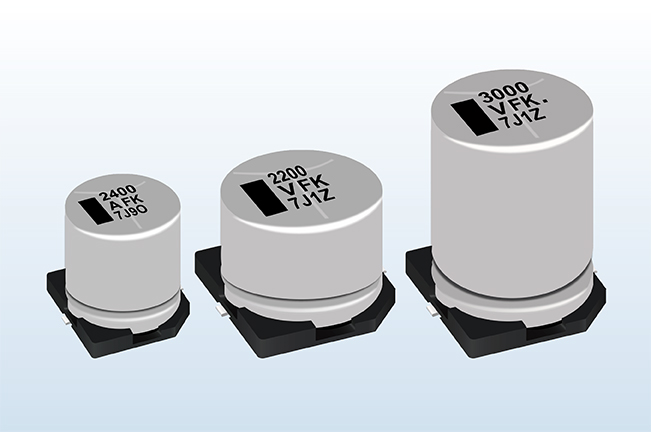

Panasonic FKS [Medium-size] (High temp. reflow) Series EEEFK1E472SM
Model
:
EEEFK1E472SM
Catalog
Catalogue
FKS [Medium-size] (High temp. reflow) Series Catalogue English (Download)
FKS [Medium-size] (High temp. reflow) Series Catalogue Chinese (Download)
FKS [Medium-size] (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFK1E472SM
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
18.00mm
Length
21.50mm
Electrical
Capacitance
4700µf
Leakage current .Max
1175µA
Rated ripple current freq.
100000Hz
Rated ripple current
2640.0mA
Rated voltage
25.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
