Capacitor
Aluminum Electrolytic Capacitors
EEEFK1C432SM

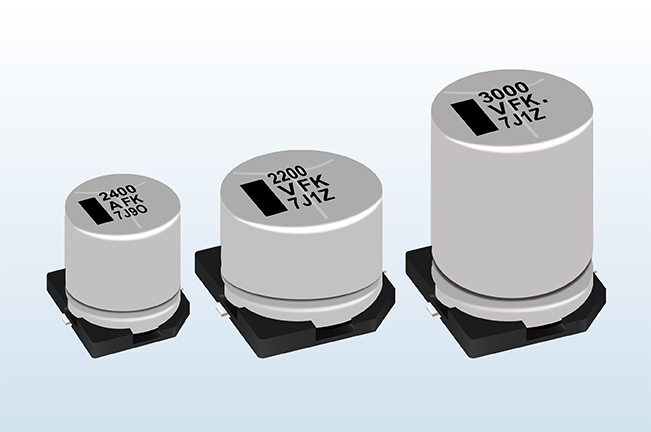

Panasonic FKS [Medium-size] (High temp. reflow) Series EEEFK1C432SM
Model
:
EEEFK1C432SM
Catalog
Catalogue
FKS [Medium-size] (High temp. reflow) Series Catalogue English (Download)
FKS [Medium-size] (High temp. reflow) Series Catalogue Chinese (Download)
FKS [Medium-size] (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFK1C432SM
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
16.00mm
Length
16.50mm
Electrical
Capacitance
4300µf
Leakage current .Max
688µA
Rated ripple current freq.
100000Hz
Rated ripple current
1800.0mA
Rated voltage
16.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
