EEEFK0J352SQ

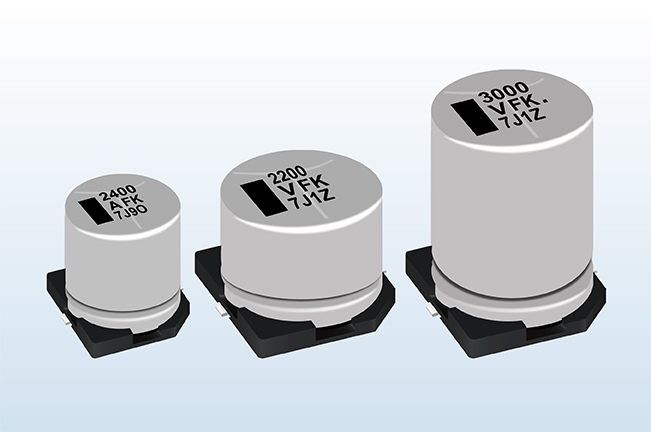

Panasonic FKS [Medium-size] (High temp. reflow) Series EEEFK0J352SQ
Model
:
EEEFK0J352SQ
Catalog
Catalogue
FKS [Medium-size] (High temp. reflow) Series Catalogue English (Download)
FKS [Medium-size] (High temp. reflow) Series Catalogue Chinese (Download)
FKS [Medium-size] (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFK0J352SQ
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
12.50mm
Length
13.50mm
Electrical
Capacitance
3500µf
Leakage current .Max
220.5µA
Rated ripple current freq.
100000Hz
Rated ripple current
1100.0mA
Rated voltage
6.3V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
