Capacitor
Aluminum Electrolytic Capacitors
EEEFC1C331AP

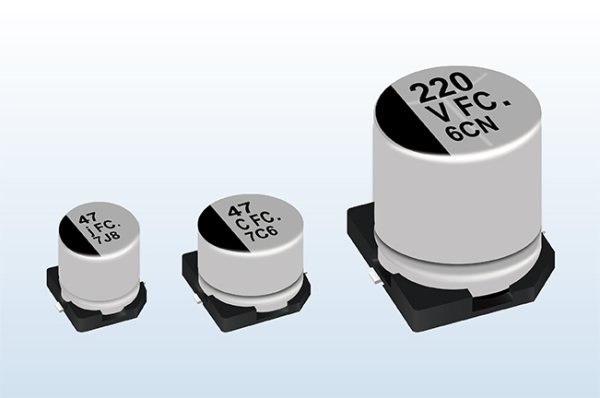

Panasonic FC (High temp. reflow) Series EEEFC1C331AP
Model
:
EEEFC1C331AP
Catalog
Catalogue
FC (High temp. reflow) Series Catalogue English (Download)
FC (High temp. reflow) Series Catalogue Chinese (Download)
FC (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFC1C331AP
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
10.00mm
Length
10.20mm
Electrical
Capacitance
330µf
Leakage current .Max
52.8µA
Rated ripple current freq.
100000Hz
Rated ripple current
670.0mA
Rated voltage
16.0V
Polarity type
Polar
Environmental
Category temperature range
－40 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
