EEEFC0J152AV

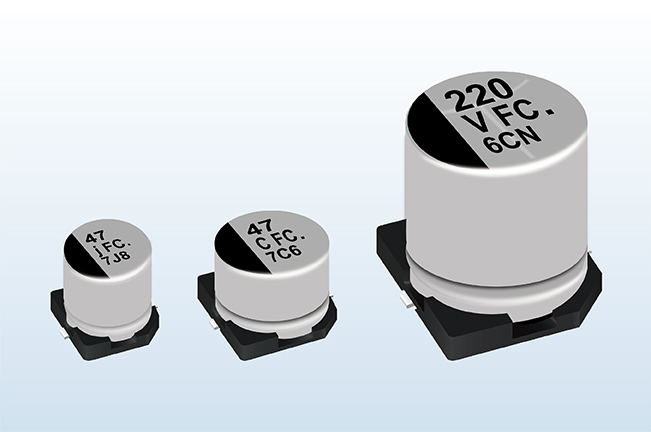

Panasonic FC (High temp. reflow) Series EEEFC0J152AV
Model
:
EEEFC0J152AV
Catalog
Catalogue
FC (High temp. reflow) Series Catalogue English (Download)
FC (High temp. reflow) Series Catalogue Chinese (Download)
FC (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFC0J152AV
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
10.00mm
Length
10.50mm
Electrical
Capacitance
1500µf
Leakage current .Max
94.5µA
Rated ripple current freq.
100000Hz
Rated ripple current
670.0mA
Rated voltage
6.3V
Polarity type
Polar
Environmental
Category temperature range
－40 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
