EEE1CA471P

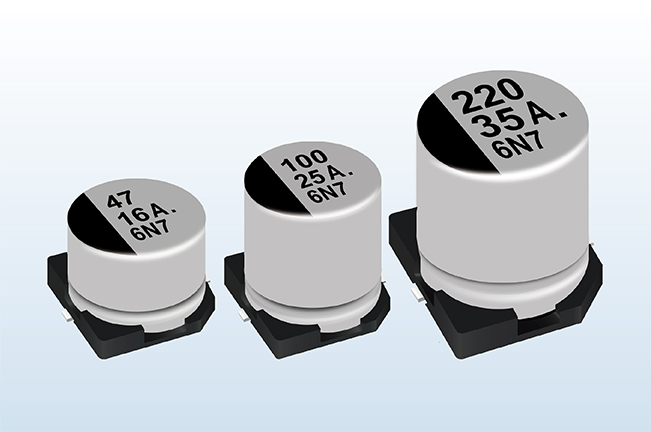

Panasonic S Series EEE1CA471P
Model
:
EEE1CA471P
Catalog
Catalogue
S Series Catalogue English (Download)
S Series Catalogue Chinese (Download)
S Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEE1CA471P
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
10.00mm
Length
10.20mm
Electrical
Capacitance
470µf
Leakage current .Max
75.2µA
Rated ripple current freq.
120Hz
Rated ripple current
420.0mA
Rated voltage
16.0V
Polarity type
Polar
Environmental
Category temperature range
－40℃ ～ ＋85℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
