EEAGA1E100
Weight:
0.21
g

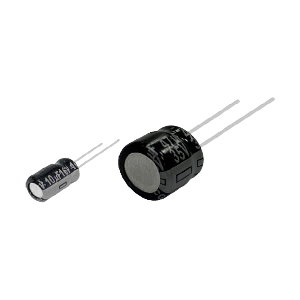

Panasonic GA-A Series EEAGA1E100
Model
:
EEAGA1E100
Catalogue
GA-A Series Catalogue English (Download)
GA-A Series Catalogue Chinese (Download)
3D Data
3D EEAGA1E100 (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEAGA1E100
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
GA-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
1.5mm
Diameter
4.00mm
Length
7.00mm
Electrical
Capacitance
10.00µf
Rated Ripple Current-1
33mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
1000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.16
Rated voltage
25.0V
Leakage current .Max
3µA
Environmental
Category temperature range
－55℃ ～ ＋105°C
Packaging
Packing Specification
Bulk (no lead wire or terminal forming), bag packing
Min. Packaging (Pcs)
200
