ECWH8103HAQ
Weight:
0.8
g

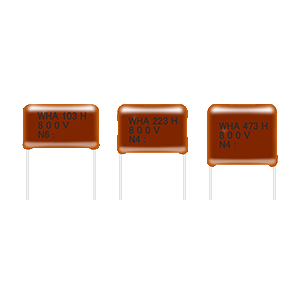

Panasonic ECWH(A) Series ECWH8103HAQ
Model
:
ECWH8103HAQ
Catalogue
ECWH(A) Series Catalogue English (Download)
ECWH(A) Series Catalogue Chinese (Download)
ECWH(A) Series Catalogue Japanese (Download)
3D Data
3D ECWH8103HAQ (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECWH8103HAQ
General
Safety Mechanism
Not installed
Series
ECWH(A)
Type
Metallized PP Film Capacitor
Mounting
Mounting Method
Resin dipped & radial leaded type
Dimensions
Lead (terminal) Pitch
12.5mm
Length
15.40mm
Height
14.80mm
Thick Mean
5.40mm
Electrical
AC / DC
DC
Capacitance
0.01µF
Dielectric material
MPP
Capacitance Tolerance
±3%
Rated voltage
800.0V
Mechanical
Shape of lead wire
Crimped lead wire type (Style D)
Environmental
Category temperature range
－40℃ ～ ＋105°C (85)
Packaging
Packing Specification
Bulk (Bag packing)
Min. Packaging (Pcs)
100
