ECWH10563HV
Weight:
7
g

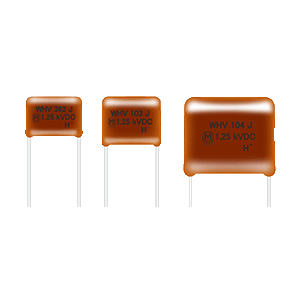

Panasonic ECWH(V) Series ECWH10563HV
Model
:
ECWH10563HV
Catalogue
ECWH(V) Series Catalogue English (Download)
ECWH(V) Series Catalogue Chinese (Download)
ECWH(V) Series Catalogue Japanese (Download)
3D Data
3D ECWH10563HV (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECWH10563HV
General
Safety Mechanism
Not installed
Series
ECWH(V)
Type
Metallized PP Film Capacitor
Mounting
Mounting Method
Resin dipped & radial leaded type
Dimensions
Lead (terminal) Pitch
20.0mm
Length
23.00mm
Height
17.50mm
Thick Mean
9.50mm
Electrical
AC / DC
DC
Capacitance
0.06µF
Dielectric material
MPET+PP
Capacitance Tolerance
±3%
Rated voltage
1000.0V
Mechanical
Shape of lead wire
Straight lead wire type
Environmental
Category temperature range
－40℃ ～ ＋105°C (85)
Packaging
Packing Specification
Bulk (Bag packing)
Min. Packaging (Pcs)
100
