ECQE1A334KT3
Weight:
2.3
g

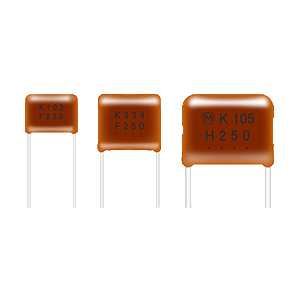

Panasonic ECQE(T) [AC Rated] Series ECQE1A334KT3
Model
:
ECQE1A334KT3
Catalogue
ECQE(T) [AC Rated] Series Catalogue Chinese (Download)
ECQE(T) [AC Rated] Series Catalogue Japanese (Download)
3D Data
3D ECQE1A334KT3 (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECQE1A334KT3
General
Safety Mechanism
Not installed
Series
ECQE(T) [AC Rated]
Type
Metallized Polyester Capacitor
Mounting
Mounting Method
Resin dipped & radial leaded type
Dimensions
Lead (terminal) Pitch
5.0mm
Length
19.00mm
Height
17.50mm
Thick Mean
6.90mm
Electrical
AC / DC
AC
Capacitance
0.33μF
Dielectric material
MPET
Capacitance Tolerance
±10%
Rated voltage
125.0V
Mechanical
Shape of lead wire
Crimped lead wire type (Style D)
Environmental
Category temperature range
－40℃ ～ ＋85°C
Packaging
Packing Specification
25.4P crimped lead taping (ammo packing)
Min. Packaging (Pcs)
500
