ECEA1VSN2R2B
Weight:
0.18
g

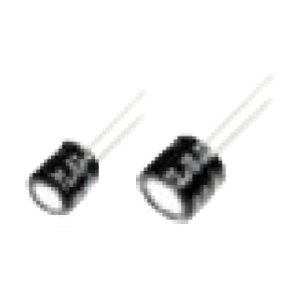

Panasonic KS-A (Bi-polar) Series ECEA1VSN2R2B
Model
:
ECEA1VSN2R2B
Catalogue
KS-A (Bi-polar) Series Catalogue English (Download)
KS-A (Bi-polar) Series Catalogue Chinese (Download)
3D Data
3D ECEA1VSN2R2B (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECEA1VSN2R2B
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
KS-A (Bi-polar)
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
4.00mm
Length
5.00mm
Electrical
Capacitance
2.20µF
Rated Ripple Current-1
12mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
1000h
Capacitance Tolerance
±20%
Polarity type
Bi-polar
Dissipation Factor (DF) Max.
0.2
Rated voltage
35.0V
Leakage current .Max
10µA
Environmental
Category temperature range
－40℃ ～ ＋85°C
Packaging
Packing Specification
Lead taping (ammo packing), standard
Min. Packaging (Pcs)
2000
