Capacitor
Aluminum Electrolytic Capacitors (Radial Lead Type)
ECEA1HKA4R7I
Weight:
0.21
g

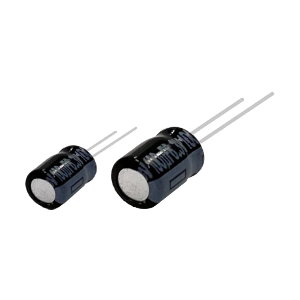

Panasonic KA-A Series ECEA1HKA4R7I
Model
:
ECEA1HKA4R7I
Catalogue
KA-A Series Catalogue English (Download)
KA-A Series Catalogue Chinese (Download)
3D Data
3D ECEA1HKA4R7I (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECEA1HKA4R7I
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
KA-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
2.5mm
Diameter
4.00mm
Length
7.00mm
Electrical
Capacitance
4.70µf
Rated Ripple Current-1
23mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
1000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.1
Rated voltage
50.0V
Leakage current .Max
3µA
Environmental
Category temperature range
－40℃ ～ ＋85°C
Packaging
Packing Specification
Lead taping (ammo packing), F=2.5mm
Min. Packaging (Pcs)
2000
