Capacitor
Aluminum Electrolytic Capacitors (Radial Lead Type)
ECEA1EKA220B
Weight:
0.29
g

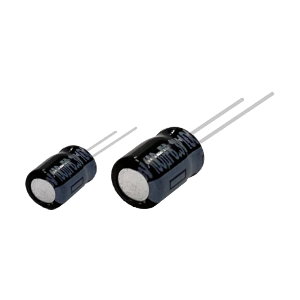

Panasonic KA-A Series ECEA1EKA220B
Model
:
ECEA1EKA220B
Catalogue
KA-A Series Catalogue English (Download)
KA-A Series Catalogue Chinese (Download)
3D Data
3D ECEA1EKA220B (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECEA1EKA220B
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
KA-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
5.00mm
Length
7.00mm
Electrical
Capacitance
22.00µf
Rated Ripple Current-1
55mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
1000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.14
Rated voltage
25.0V
Leakage current .Max
5.5µA
Environmental
Category temperature range
－40℃ ～ ＋85°C
Packaging
Packing Specification
Lead taping (ammo packing), standard
Min. Packaging (Pcs)
2000
