Capacitor
Aluminum Electrolytic Capacitors (Radial Lead Type)
ECEA1AN221UE
Weight:
1.1
g

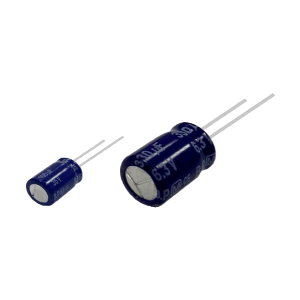

Panasonic SU-A (Bi-polar) Series ECEA1AN221UE
Model
:
ECEA1AN221UE
Catalogue
SU-A (Bi-polar) Series Catalogue English (Download)
SU-A (Bi-polar) Series Catalogue Chinese (Download)
3D Data
3D ECEA1AN221UE (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECEA1AN221UE
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
SU-A (Bi-polar)
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
8.00mm
Length
11.50mm
Electrical
Capacitance
220.00µf
Rated Ripple Current-1
200mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Bi-polar
Dissipation Factor (DF) Max.
0.25
Rated voltage
10.0V
Leakage current .Max
69µA
Environmental
Category temperature range
－40℃ ～ ＋85°C
Packaging
Packing Specification
Bulk (the lead wire or terminal of snap-in type forming), bag packing
Min. Packaging (Pcs)
200
