Capacitor
Aluminum Electrolytic Capacitors (Radial Lead Type)
ECEA0GKA471E
Weight:
0.63
g

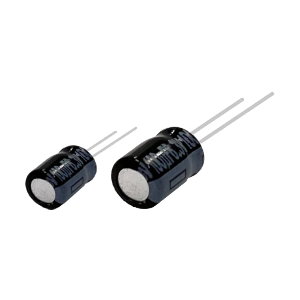

Panasonic KA-A Series ECEA0GKA471E
Model
:
ECEA0GKA471E
Catalogue
KA-A Series Catalogue English (Download)
KA-A Series Catalogue Chinese (Download)
3D Data
3D ECEA0GKA471E (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECEA0GKA471E
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
KA-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
8.00mm
Length
7.00mm
Electrical
Capacitance
470.00µf
Rated Ripple Current-1
140mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
1000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.35
Rated voltage
4.0V
Leakage current .Max
18.8µA
Environmental
Category temperature range
－40℃ ～ ＋85°C
Packaging
Packing Specification
Bulk (the lead wire or terminal of snap-in type forming), bag packing
Min. Packaging (Pcs)
200
