Capacitor
Aluminum Electrolytic Capacitors (Radial Lead Type)
ECA1JM222
Weight:
0.44
g

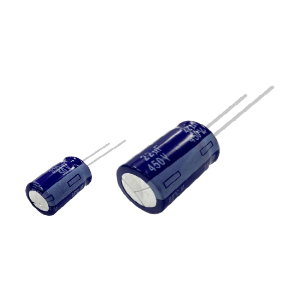

Panasonic M-A Series ECA1JM222
Model
:
ECA1JM222
Catalogue
M-A Series Catalogue English (Download)
M-A Series Catalogue Chinese (Download)
M-A Series Catalogue Japanese (Download)
3D Data
3D ECA1JM222 (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECA1JM222
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
M-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
7.5mm
Diameter
18.00mm
Length
35.50mm
Electrical
Capacitance
2200.00µF
Rated Ripple Current-1
1400mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.13
Rated voltage
63.0V
Leakage current .Max
1386µA
Environmental
Category temperature range
－40℃ ～ ＋85°C
Packaging
Packing Specification
Bulk (no lead wire or terminal forming), bag packing
Min. Packaging (Pcs)
50
