Capacitor
Aluminum Electrolytic Capacitors (Radial Lead Type)
ECA1JHG331B
Weight:
2.6
g

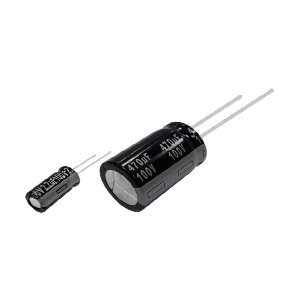

Panasonic NHG-A Series ECA1JHG331B
Model
:
ECA1JHG331B
Catalogue
NHG-A Series Catalogue English (Download)
NHG-A Series Catalogue Chinese (Download)
NHG-A Series Catalogue Japanese (Download)
3D Data
3D ECA1JHG331B (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECA1JHG331B
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
NHG-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
10.00mm
Length
20.00mm
Electrical
Capacitance
330.00µf
Rated Ripple Current-1
510mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.1
Rated voltage
63.0V
Leakage current .Max
207.9µA
Environmental
Category temperature range
－55℃ ～ ＋105°C
Packaging
Packing Specification
Lead taping (ammo packing), standard
Min. Packaging (Pcs)
500
