ECA1HEN3R3B
Weight:
0.44
g

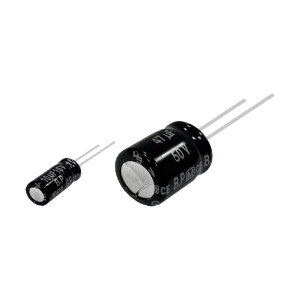

Panasonic GA-A (Bi-polar) Series ECA1HEN3R3B
Model
:
ECA1HEN3R3B
Catalogue
GA-A (Bi-polar) Series Catalogue English (Download)
GA-A (Bi-polar) Series Catalogue Chinese (Download)
3D Data
3D ECA1HEN3R3B (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECA1HEN3R3B
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
GA-A (Bi-polar)
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
5.00mm
Length
11.00mm
Electrical
Capacitance
3.30µf
Rated Ripple Current-1
25mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Bi-polar
Dissipation Factor (DF) Max.
0.15
Rated voltage
50.0V
Leakage current .Max
8µA
Environmental
Category temperature range
－40℃ ～ ＋105°C
Packaging
Packing Specification
Lead taping (ammo packing), standard
Min. Packaging (Pcs)
2000
