Aluminum Electrolytic Capacitors (Radial Lead Type)
ECA1EHG472
Weight:
10
g

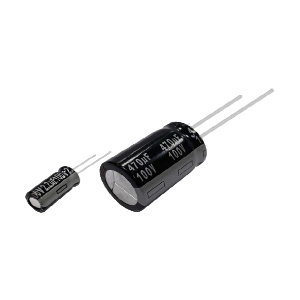

Panasonic NHG-A Series ECA1EHG472
Model
:
ECA1EHG472
Catalogue
NHG-A Series Catalogue English (Download)
NHG-A Series Catalogue Chinese (Download)
NHG-A Series Catalogue Japanese (Download)
3D Data
3D ECA1EHG472 (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECA1EHG472
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
NHG-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
7.5mm
Diameter
16.00mm
Length
31.50mm
Electrical
Capacitance
4700.00µF
Rated Ripple Current-1
1750mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.22
Rated voltage
25.0V
Leakage current .Max
1175µA
Environmental
Category temperature range
－55℃ ～ ＋105°C
Packaging
Packing Specification
Bulk (no lead wire or terminal forming), bag packing
Min. Packaging (Pcs)
100
