ECA1EEN220E
Weight:
0.65
g

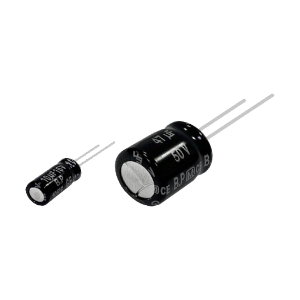

Panasonic GA-A (Bi-polar) Series ECA1EEN220E
Model
:
ECA1EEN220E
Catalogue
GA-A (Bi-polar) Series Catalogue English (Download)
GA-A (Bi-polar) Series Catalogue Chinese (Download)
3D Data
3D ECA1EEN220E (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECA1EEN220E
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
GA-A (Bi-polar)
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
6.30mm
Length
11.20mm
Electrical
Capacitance
22.00µf
Rated Ripple Current-1
60mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Bi-polar
Dissipation Factor (DF) Max.
0.15
Rated voltage
25.0V
Leakage current .Max
19.5µA
Environmental
Category temperature range
－40℃ ～ ＋105°C
Packaging
Packing Specification
Bulk (the lead wire or terminal of snap-in type forming), bag packing
Min. Packaging (Pcs)
200
