Capacitor
Aluminum Electrolytic Capacitors (Radial Lead Type)
ECA1EEN101B
Weight:
1.1
g

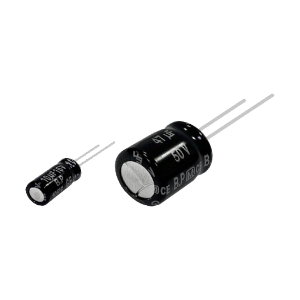

Panasonic GA-A (Bi-polar) Series ECA1EEN101B
Model
:
ECA1EEN101B
Catalogue
GA-A (Bi-polar) Series Catalogue English (Download)
GA-A (Bi-polar) Series Catalogue Chinese (Download)
3D Data
3D ECA1EEN101B (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECA1EEN101B
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
GA-A (Bi-polar)
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
8.00mm
Length
11.50mm
Electrical
Capacitance
100.00µf
Rated Ripple Current-1
180mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Bi-polar
Dissipation Factor (DF) Max.
0.15
Rated voltage
25.0V
Leakage current .Max
78µA
Environmental
Category temperature range
－40℃ ～ ＋105°C
Packaging
Packing Specification
Lead taping (ammo packing), standard
Min. Packaging (Pcs)
1000
