ECA1AHG332E
Weight:
3.9
g

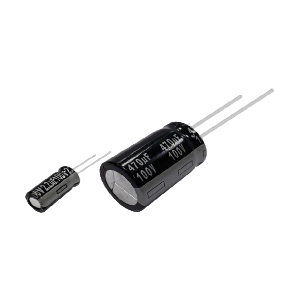

Panasonic NHG-A Series ECA1AHG332E
Model
:
ECA1AHG332E
Catalogue
NHG-A Series Catalogue Japanese (Download)
3D Data
3D ECA1AHG332E (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECA1AHG332E
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
NHG-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
12.50mm
Length
20.00mm
Electrical
Capacitance
3300.00µF
Rated Ripple Current-1
1000mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.28
Rated voltage
10.0V
Leakage current .Max
330µA
Environmental
Category temperature range
－55℃ ～ ＋105°C
Packaging
Packing Specification
Bulk (the lead wire or terminal of snap-in type forming), bag packing
Min. Packaging (Pcs)
200
