ECA0JHG332B
Weight:
2.6
g

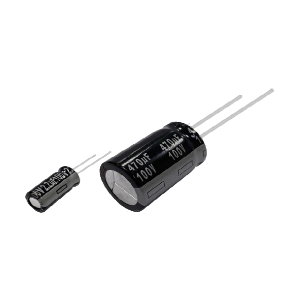

Panasonic NHG-A Series ECA0JHG332B
Model
:
ECA0JHG332B
Catalogue
NHG-A Series Catalogue Japanese (Download)
3D Data
3D ECA0JHG332B (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECA0JHG332B
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
NHG-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
10.00mm
Length
20.00mm
Electrical
Capacitance
3300.00µF
Rated Ripple Current-1
840mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.32
Rated voltage
6.3V
Leakage current .Max
207.9µA
Environmental
Category temperature range
－55℃ ～ ＋105°C
Packaging
Packing Specification
Lead taping (ammo packing), standard
Min. Packaging (Pcs)
500
