ECA0JHG101B
Weight:
0.44
g

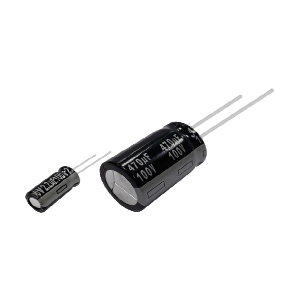

Panasonic NHG-A Series ECA0JHG101B
Model
:
ECA0JHG101B
Catalogue
NHG-A Series Catalogue Japanese (Download)
3D Data
3D ECA0JHG101B (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
ECA0JHG101B
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
NHG-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
5.00mm
Length
11.00mm
Electrical
Capacitance
100.00µf
Rated Ripple Current-1
91mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.28
Rated voltage
6.3V
Leakage current .Max
6.3µA
Environmental
Category temperature range
－55℃ ～ ＋105°C
Packaging
Packing Specification
Lead taping (ammo packing), standard
Min. Packaging (Pcs)
2000
