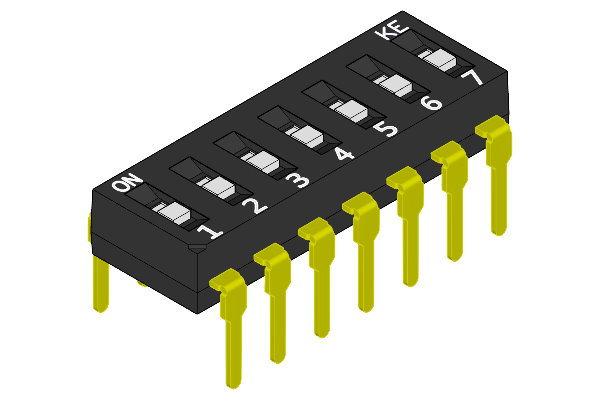

DSIC07THGER
KE DSIC Series DSIC07THGER
Model
:
DSIC07THGER
Datasheet
Datasheet DSIC07THGET (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
KE
Model
DSIC07THGER
Switches
DIP Switches
Series
DSIC
Type
DIP
Circuit Type
Single Pole Single Throw
Terminal pitch
2.54mm
Operator Force
1000gf Max
Terminal Shape
H Bent
No. of pins
07
Body Length (L)
6.0mm
Body Width (W)
17.78mm
Body Height (H)
3.15mm
Color
Black
Switching Rating
25mA, 24VDC
Non-Switching Rating
100mA, 50VDC
Contact Resistance
50mΩ Max
Insulation Resistance
500mΩ at 500VDC
Dielectric Strength
500VDC/1min
Travel
0.9mm
Operating Life
3000
Operating Temperature
－40°～85°
Packaging
Reel
