DSIC06TSGET

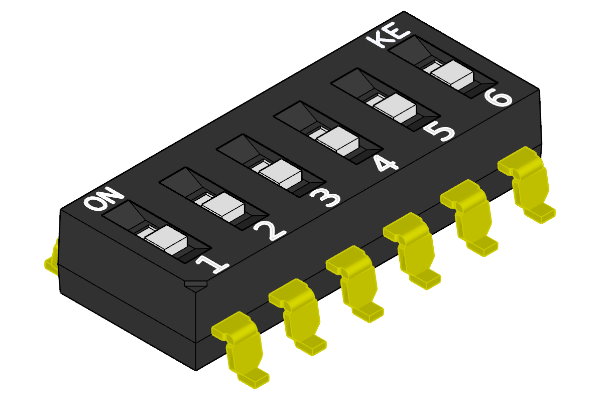

KE DSIC Series DSIC06TSGET
Model
:
DSIC06TSGET
Datasheet
Datasheet DSIC07LHGER (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
KE
Model
DSIC06TSGET
Switches
DIP Switches
Series
DSIC
Type
SMD
Circuit Type
Single Pole Single Throw
Terminal pitch
2.54mm
Operator Force
1000gf Max
Terminal Shape
S Bent
No. of pins
06
Body Length (L)
6.0mm
Body Width (W)
15.24mm
Body Height (H)
3.55mm
Color
Black
Switching Rating
25mA, 24VDC
Non-Switching Rating
100mA, 50VDC
Contact Resistance
50mΩ Max
Insulation Resistance
500mΩ at 500VDC
Dielectric Strength
500VDC/1min
Travel
0.9mm
Operating Life
3000
Operating Temperature
－40°～85°
Packaging
Tube
Min. Packaging (Pcs)
33
