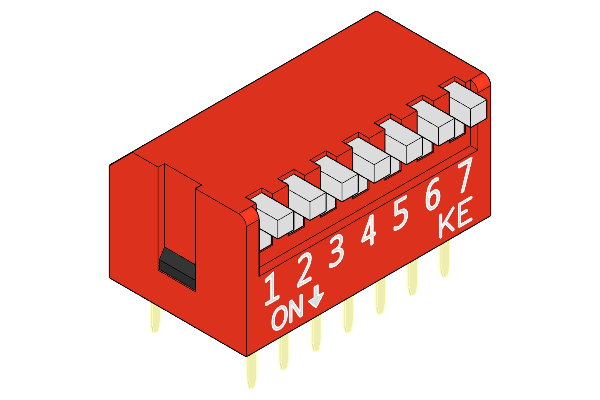

DSDP07LHGETR
KE DSDP Series DSDP07LHGETR
Model
:
DSDP07LHGETR
Datasheet
Datasheet DSDP08LHGET (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
KE
Model
DSDP07LHGETR
Switches
DIP Switches
Series
DSDP
Type
DIP
Circuit Type
Single Pole Single Throw
Terminal pitch
2.54mm
Operator Force
1000gf Max
Terminal Shape
H Bent
No. of pins
07
Body Length (L)
10.8mm
Body Width (W)
19.33mm
Body Height (H)
9.4mm
Color
Red
Switching Rating
25mA, 24VDC
Non-Switching Rating
100mA, 50VDC
Contact Resistance
50mΩ Max
Insulation Resistance
500mΩ at 500VDC
Dielectric Strength
500VDC/1min
Travel
1.8mm
Operating Life
2000
Operating Temperature
－20°～70°
Packaging
Tube
Min. Packaging (Pcs)
25
