DSDP01LHGETB

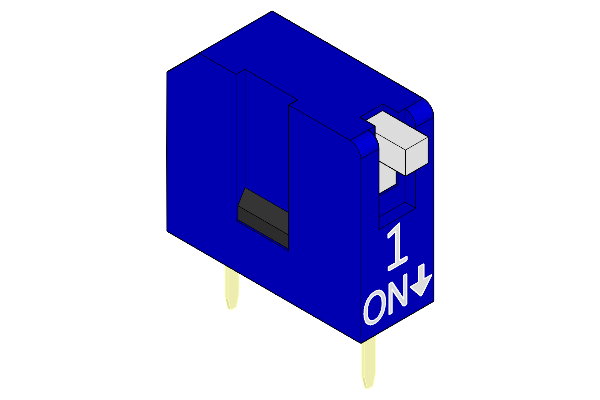

KE DSDP Series DSDP01LHGETB
Model
:
DSDP01LHGETB
Datasheet
Datasheet DSDP01LHGETR (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
KE
Model
DSDP01LHGETB
Switches
DIP Switches
Series
DSDP
Type
DIP
Circuit Type
Single Pole Single Throw
Terminal pitch
2.54mm
Operator Force
1000gf Max
Terminal Shape
H Bent
No. of pins
01
Body Length (L)
10.8mm
Body Width (W)
4.09mm
Body Height (H)
9.4mm
Color
Blue
Switching Rating
25mA, 24VDC
Non-Switching Rating
100mA, 50VDC
Contact Resistance
50mΩ Max
Insulation Resistance
500mΩ at 500VDC
Dielectric Strength
500VDC/1min
Travel
1.8mm
Operating Life
2000
Operating Temperature
－20°～70°
Packaging
Tube
Min. Packaging (Pcs)
121
