Switches
DIP Switches
DSDA07LHGETR

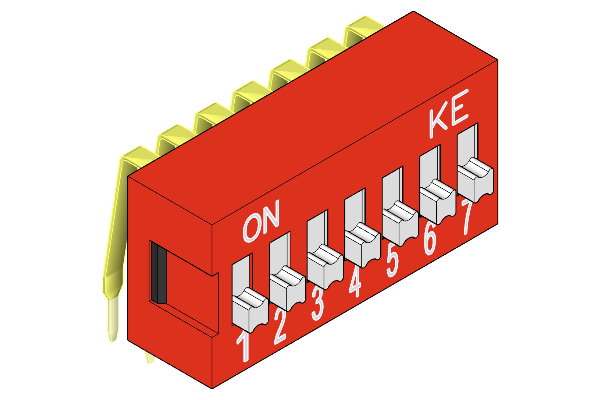

KE DSDA Series DSDA07LHGETR
Model
:
DSDA07LHGETR
Datasheet
Datasheet DSDA08LHGETR (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
KE
Model
DSDA07LHGETR
Switches
DIP Switches
Series
DSDA
Type
DIP
Circuit Type
Single Pole Single Throw
Terminal pitch
2.54mm
Operator Force
1000gf Max
Terminal Shape
H Bent
No. of pins
07
Body Length (L)
9.84mm
Body Width (W)
19.34mm
Body Height (H)
9.6mm
Color
Red
Switching Rating
25mA, 24VDC
Non-Switching Rating
100mA, 50VDC
Contact Resistance
50mΩ Max
Insulation Resistance
500mΩ at 500VDC
Dielectric Strength
500VDC/1min
Travel
2.0mm
Operating Life
2000
Operating Temperature
－20°～70°
Packaging
Tube
Min. Packaging (Pcs)
24
