BV-SMDJ6.5A

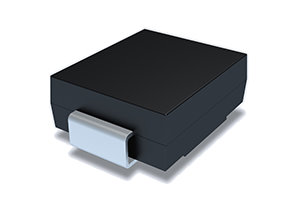

Bencent TVS BV-SMDJ6.5A
Model
:
BV-SMDJ6.5A
Catalogue
BV-SMDJ6.5A Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-SMDJ6.5A
Overvoltage Protection Components
Transient Voltage Suppressor (TVS)
Type
Uni
Repetitive Peak Off-State Voltage (VDRM)
6.5V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
500μA
Minimum Breakdown Voltage (VBR)
7.22V
Maximum Breakdown Voltage (VBR)
7.98V
Maximum Reverse Leakage Current (IR)
10mA
Maximum Clampling Voltage (VC)@IPP
11.2V @ 267.9A
Surge Waveform
10/1000μs
Peak Pulse Power (PPP)
3000W
Package
SMC
Mark
D6.5
Body Length (L)
8.25mm
Body Width (W)
6.15mm
Body Height (H)
2.95mm
Min. Packaging (Pcs)
3000
