BV-SMDJ18AQ

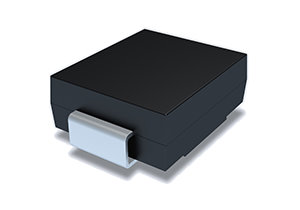

Bencent TVS BV-SMDJ18AQ
Model
:
BV-SMDJ18AQ
Catalogue
BV-SMDJ18AQ Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-SMDJ18AQ
Overvoltage Protection Components
Transient Voltage Suppressor (TVS)
Type
Uni
Repetitive Peak Off-State Voltage (VDRM)
18V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
1.0μA
Minimum Breakdown Voltage (VBR)
20V
Maximum Breakdown Voltage (VBR)
22.1V
Maximum Reverse Leakage Current (IR)
1.0mA
Maximum Clampling Voltage (VC)@IPP
29.2V @ 102.7A
Surge Waveform
10/1000μs
Peak Pulse Power (PPP)
3000W
Package
SMC
Mark
D18
Body Length (L)
8.25mm
Body Width (W)
6.15mm
Body Height (H)
2.95mm
Min. Packaging (Pcs)
3000
