BV-SMBJ7AQ

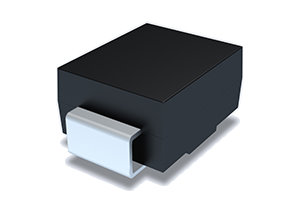

Bencent TVS BV-SMBJ7AQ
Model
:
BV-SMBJ7AQ
Catalogue
BV-SMBJ7AQ Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-SMBJ7AQ
Overvoltage Protection Components
Transient Voltage Suppressor (TVS)
Type
Uni
Repetitive Peak Off-State Voltage (VDRM)
7.0V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
200μA
Minimum Breakdown Voltage (VBR)
7.78V
Maximum Breakdown Voltage (VBR)
8.6V
Maximum Reverse Leakage Current (IR)
10mA
Maximum Clampling Voltage (VC)@IPP
12V @ 50A
Surge Waveform
10/1000μs
Peak Pulse Power (PPP)
600W
Package
SMB
Mark
B7
Body Length (L)
5.45mm
Body Width (W)
3.75mm
Body Height (H)
2.6mm
Min. Packaging (Pcs)
3000
