BV-SMBJ54CA

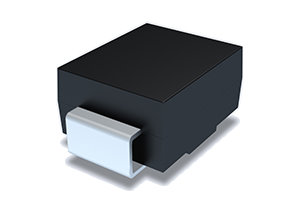

Bencent TVS BV-SMBJ54CA
Model
:
BV-SMBJ54CA
Catalogue
BV-SMBJ54CA Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-SMBJ54CA
Overvoltage Protection Components
Transient Voltage Suppressor (TVS)
Type
Bi
Repetitive Peak Off-State Voltage (VDRM)
54V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
1.0μA
Minimum Breakdown Voltage (VBR)
60V
Maximum Breakdown Voltage (VBR)
66.3V
Maximum Reverse Leakage Current (IR)
1.0mA
Maximum Clampling Voltage (VC)@IPP
87.1V @ 6.9A
Surge Waveform
10/1000μs
Peak Pulse Power (PPP)
600W
Package
SMB
Mark
B54C
Body Length (L)
5.45mm
Body Width (W)
3.75mm
Body Height (H)
2.6mm
Min. Packaging (Pcs)
3000
