BV-SMBJ36C2M

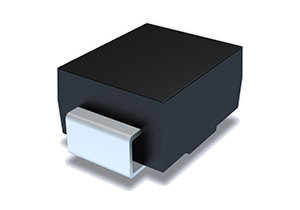

Bencent TVS BV-SMBJ36C2M
Model
:
BV-SMBJ36C2M
Catalogue
BV-SMBJ36C2M Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-SMBJ36C2M
Overvoltage Protection Components
Transient Voltage Suppressor (TVS)
Type
Bi
Repetitive Peak Off-State Voltage (VDRM)
36V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
1.0μA
Minimum Breakdown Voltage (VBR)
38V
Maximum Breakdown Voltage (VBR)
44.2V
Maximum Reverse Leakage Current (IR)
1.0mA
Maximum Clampling Voltage (VC)@IPP
50V @ 30A
Surge Waveform
10/1000μs
Peak Pulse Power (PPP)
1500W
Package
SMB
Mark
B36C2M
Body Length (L)
5.45mm
Body Width (W)
3.75mm
Body Height (H)
2.6mm
Min. Packaging (Pcs)
3000
