BV-FE07ZA

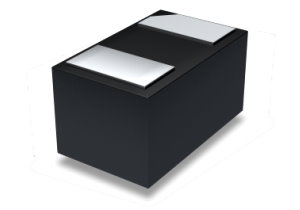

Bencent ESD BV-FE07ZA
Model
:
BV-FE07ZA
Catalogue
BV-FE07ZA Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-FE07ZA
Overvoltage Protection Components
Protection Devices (ESD)
Repetitive Peak Off-State Voltage (VDRM)
7.0V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
1.0μA
Minimum Breakdown Voltage (VBR)
7.5V
Maximum Reverse Leakage Current (IR)
1mA
Clampling Voltage (VC)@IPP
12V @ 80A
Maximum Clampling Voltage (VC)@IPP
13V @ 100A
Capacitance @0V 1MHZ Max
1000pF
Surge Waveform
8/20μs
Peak Pulse Power (PPP)
1300W
Package
DFN1610-2L
Mark
Z07A
Body Length (L)
1.6mm
Body Width (W)
1.0mm
Body Height (H)
0.5mm
Min. Packaging (Pcs)
3000
